Description

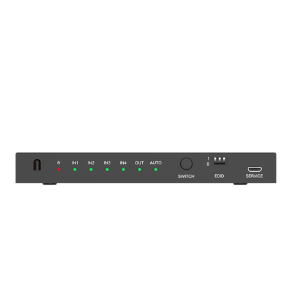

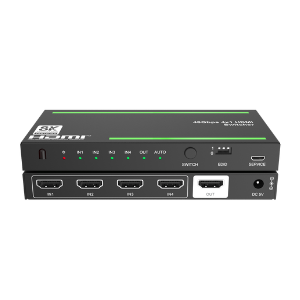

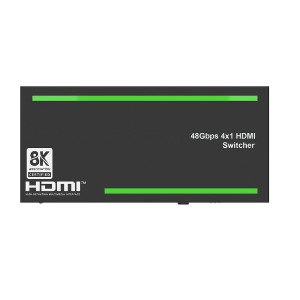

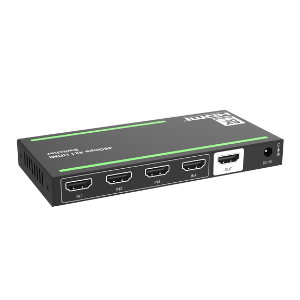

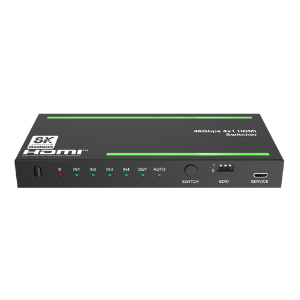

This 48Gbps 4x1 HDMI Switcher is an ultrathin auto switcher, with four HDMI video inputs and one HDMI output. The video resolutions is up to 8K@60Hz 4:2:0 12bit. It supports HDR 10, HDR 10+, Dolby Vision and multichannel audio format. Built-in EDID DIP switch supports advanced EDID management. Furthermore, the firmware update at USB Type C port is supported.
Technical Specifications
· HDMI 2.1 and HDCP 2.3 compliant
· Support 48Gbps FRL and 18Gbps TMDS video bandwidth
· 8K@60Hz 4:2:0 12bit, 8K@30 4:4:4 12bit, 4K@120Hz 4:4:4 12bit video support
· Support HDR, HDR10, HDR10+, Dolby Vision, HLG pass-through
· HDMI 2.1 protocols: VRR, ALLM, QMS, QFT, SBTM are supported
· Support HDMI audio formats: LPCM 7.1CH, Dolby TrueHD, Atmos and DTS-HD Master Audio

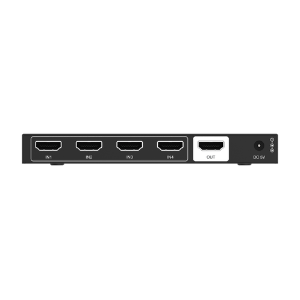

· 4 x HDMI inputs routed to 1 x HDMI output
· Control via front panel button and IR remote
· Support auto input switching and manual input switching
· Advanced EDID management
· CEC control from TV at output to source at input
