Description

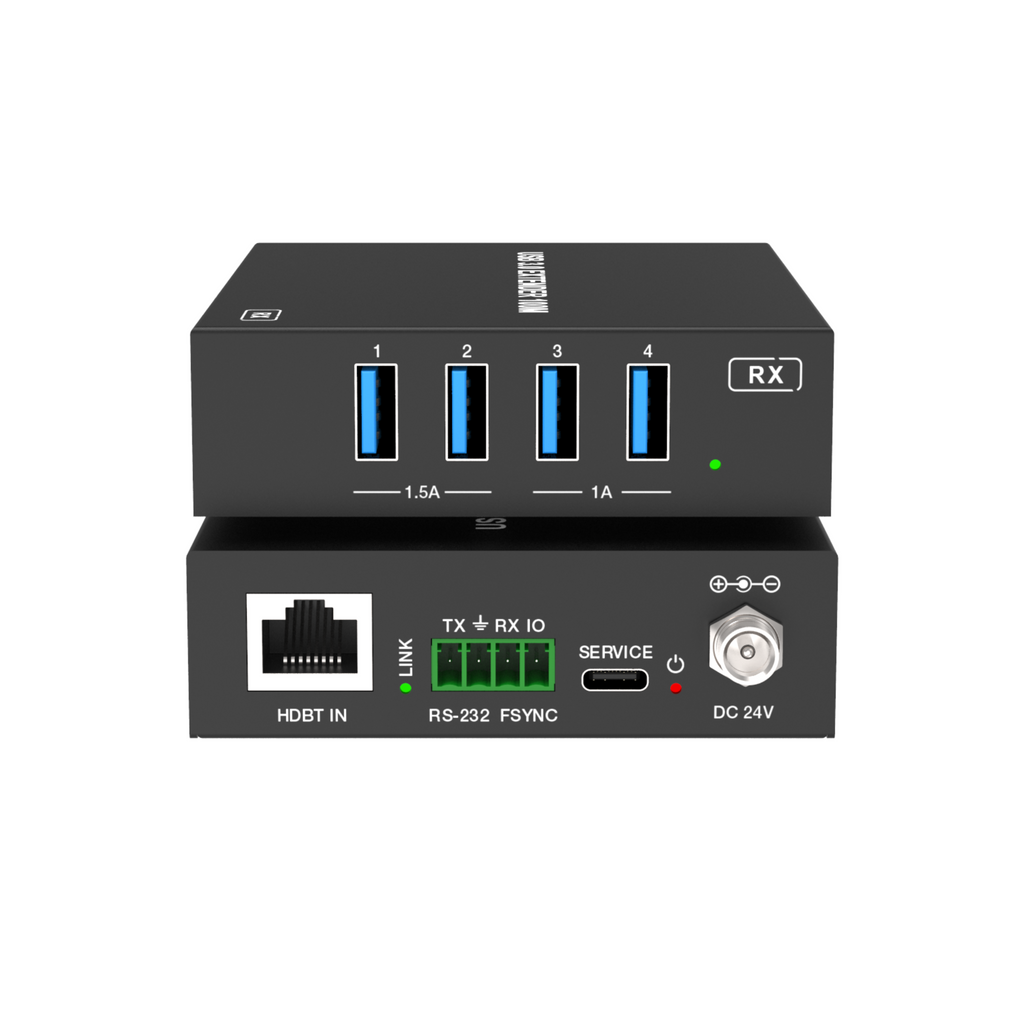

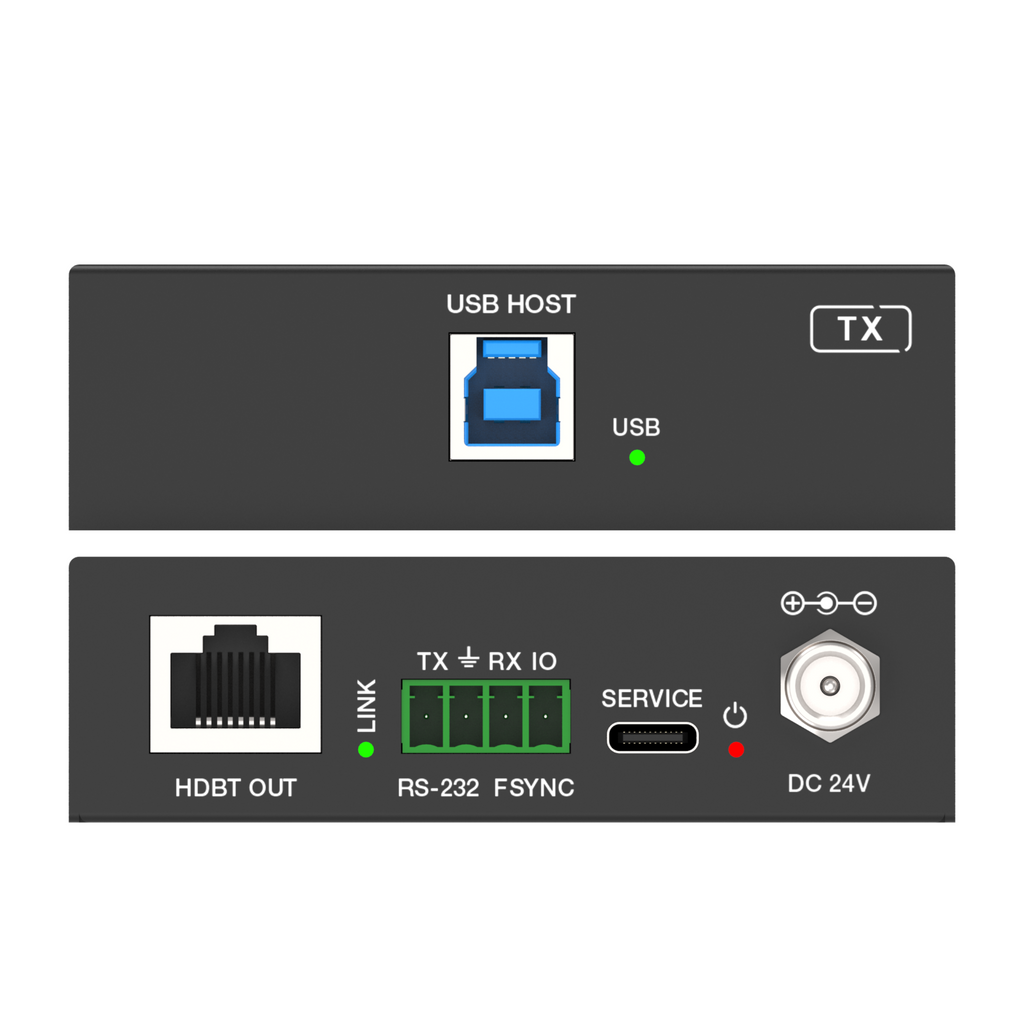

The USB 3.0 Extender can extend USB signal to a distance up to 100m/328ft via a single CAT6a cable. Transmitter features with one USB 3.0 Type B input, one FSYSNC GPIO input and one RS-232 pass-through. Receiver features with four USB 3.0 Type A outputs, one FSYSNC GPIO output and one RS-232 pass-through. Bi-directional 24V PoC is also supported. The product can be widely used for long distance signal transmission between a PC and USB devices.
Technical Specifications
Extension of USB 3.0 up to 100m/328ft over CAT6a cable
· USB 3.0 connectivity with data transfer rate up to 5Gbps
· Backwards compatible with USB 2.0 and 1.1 ☆ Hardware acceleration for isochronous and bulk transfer
· USB-A port 1 and 2 support 5V/1.5A, port 3 and 4 support 5V/1A on the Receiver
· Support RS-232 pass-through and FSYNC GPIO pass-through (for industry camera use)
· Support bi-directional 24V PoC
· Simple plug and play, no driver and setting installation required
