Description

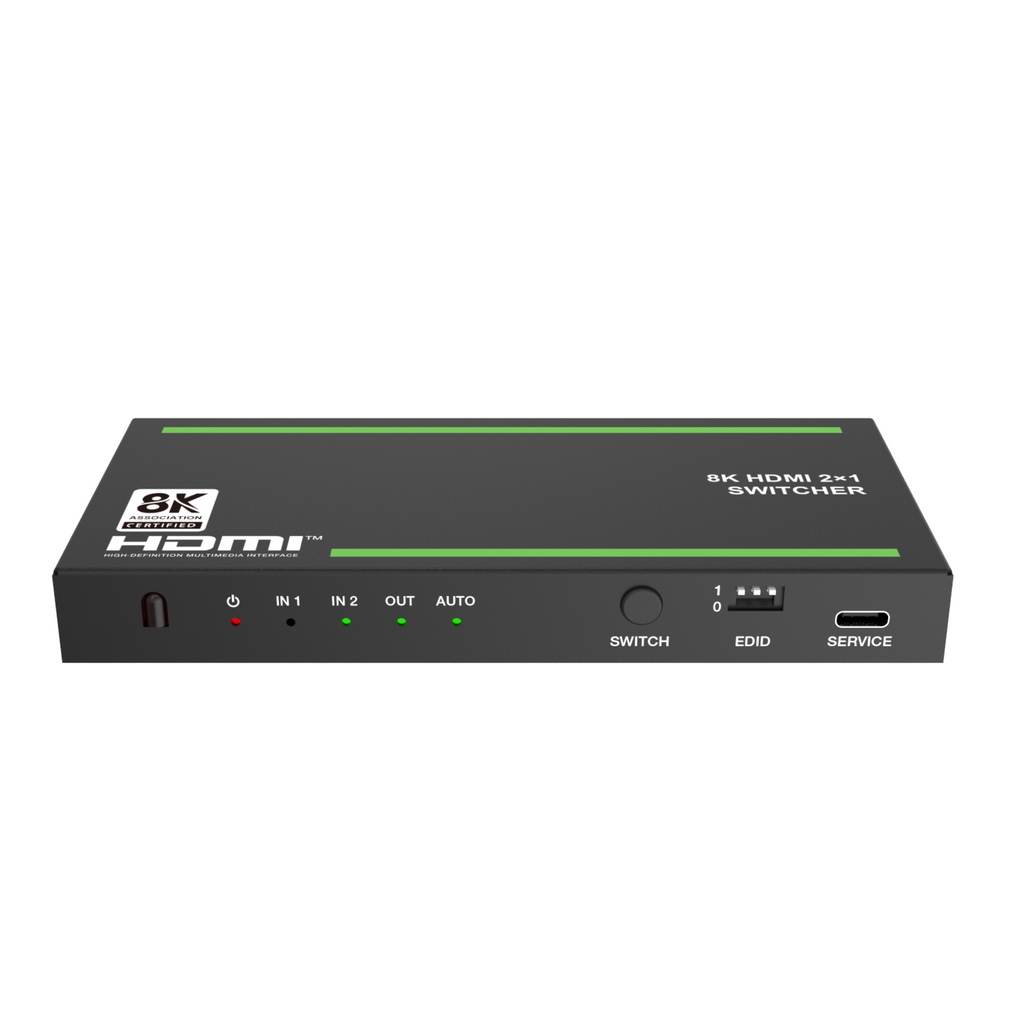

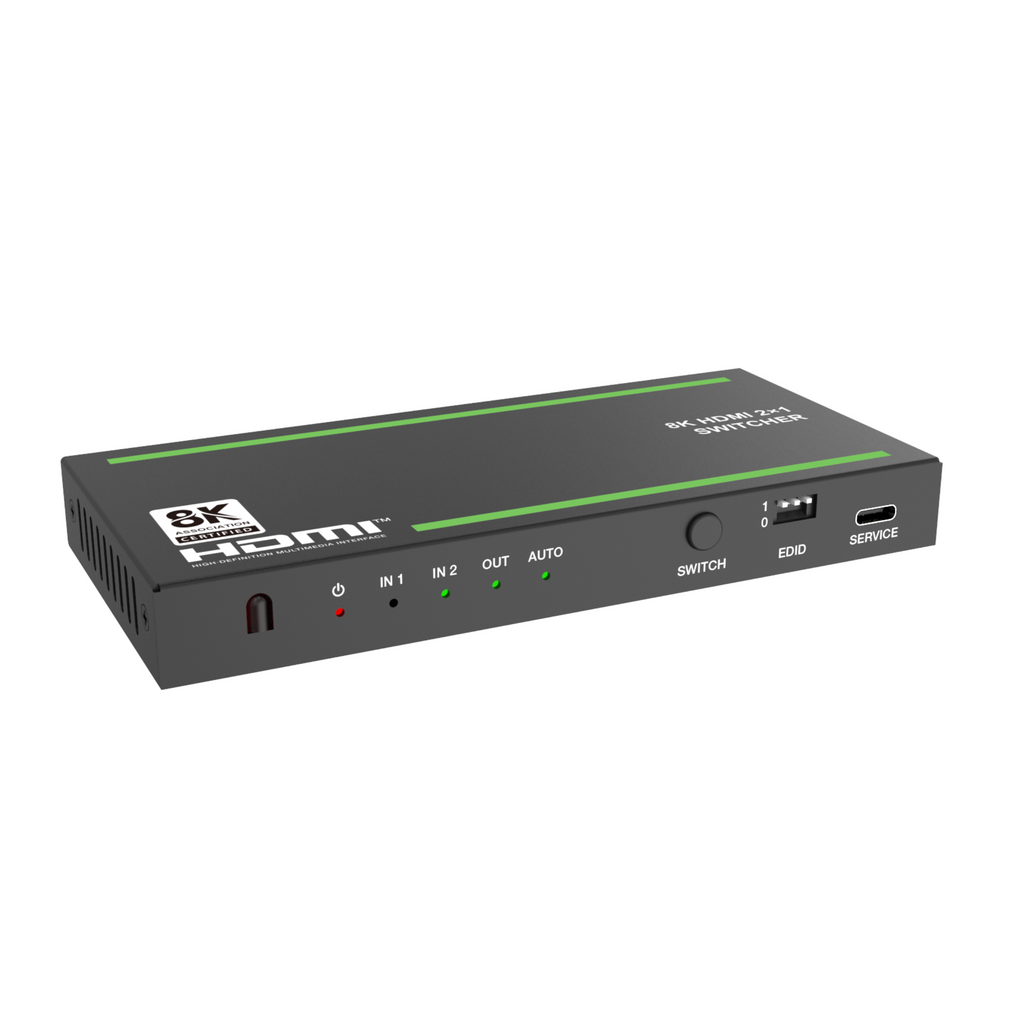

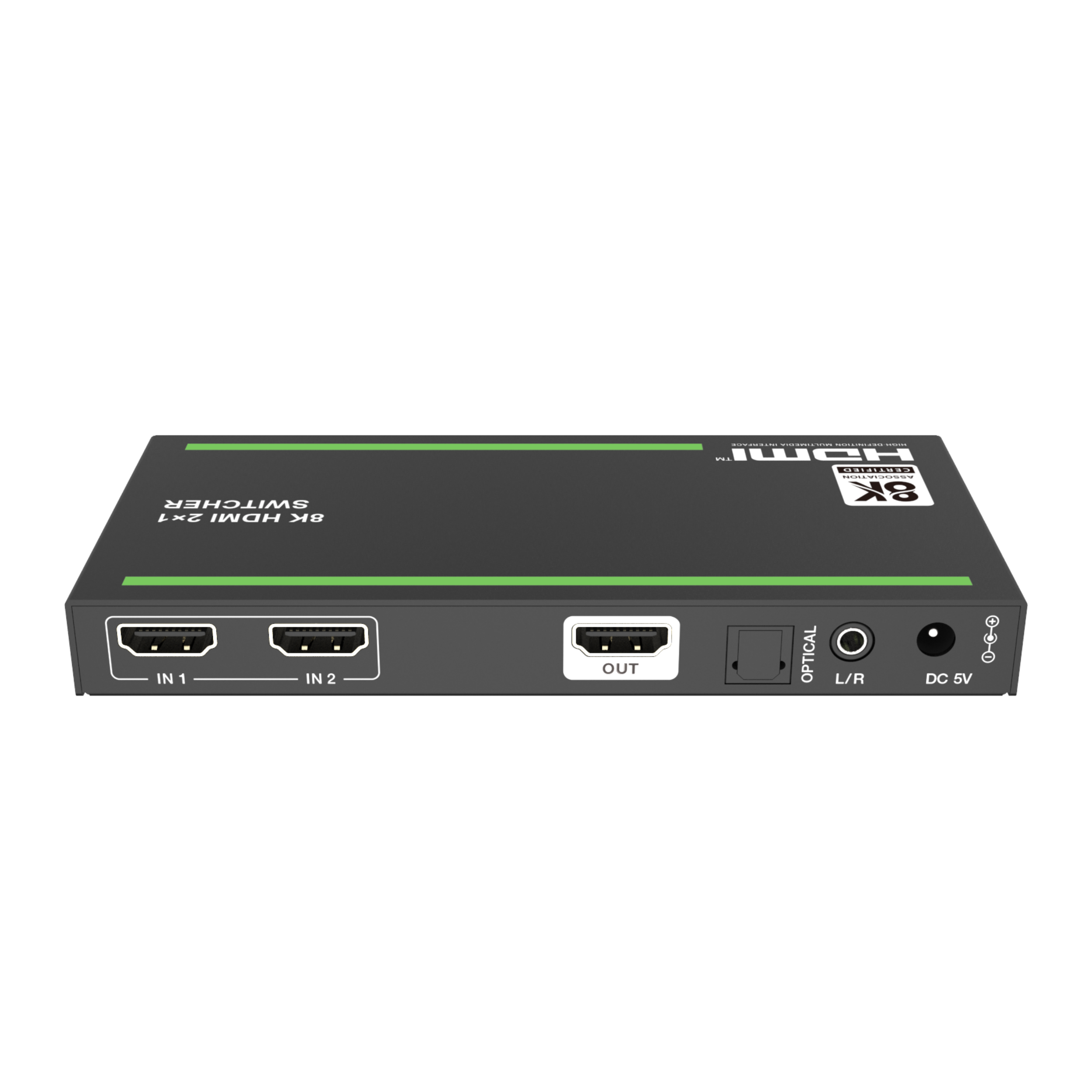

This 8K HDMI 2x1 Switcher can switch any of the two HDMI source signals to one HDMI display. It supports video resolution up to 8K@60Hz 4:2:0. It supports advanced EDID management and audio de-embedding function (output through the optical and analog port). This multi-functional product can be widely applied in scenarios of demonstration, video conference, multimedia teaching and other occasions requiring for big-screen demon[1]stration
Technical Specifications
· HDMI 2.1 and HDCP 2.3 compliant
· Support 48Gbps video bandwidth
· Support video resolution up to 8K@60Hz YCbCr 4:2:0 12bit, 4K@120Hz RGB/YCbCr 4:4:4 12bit
· VRR, FVA, ALLM supported
· Support HDR, HDR10, HDR10+, Dolby Vision, ALLM/VRR pass-through
· Support HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
· Built-in Equalizer, Retiming and Driver
· Advanced EDID management
· Support audio de-embedding function (output through the optical and analog port)
· Support IR remote control and front panel button control
